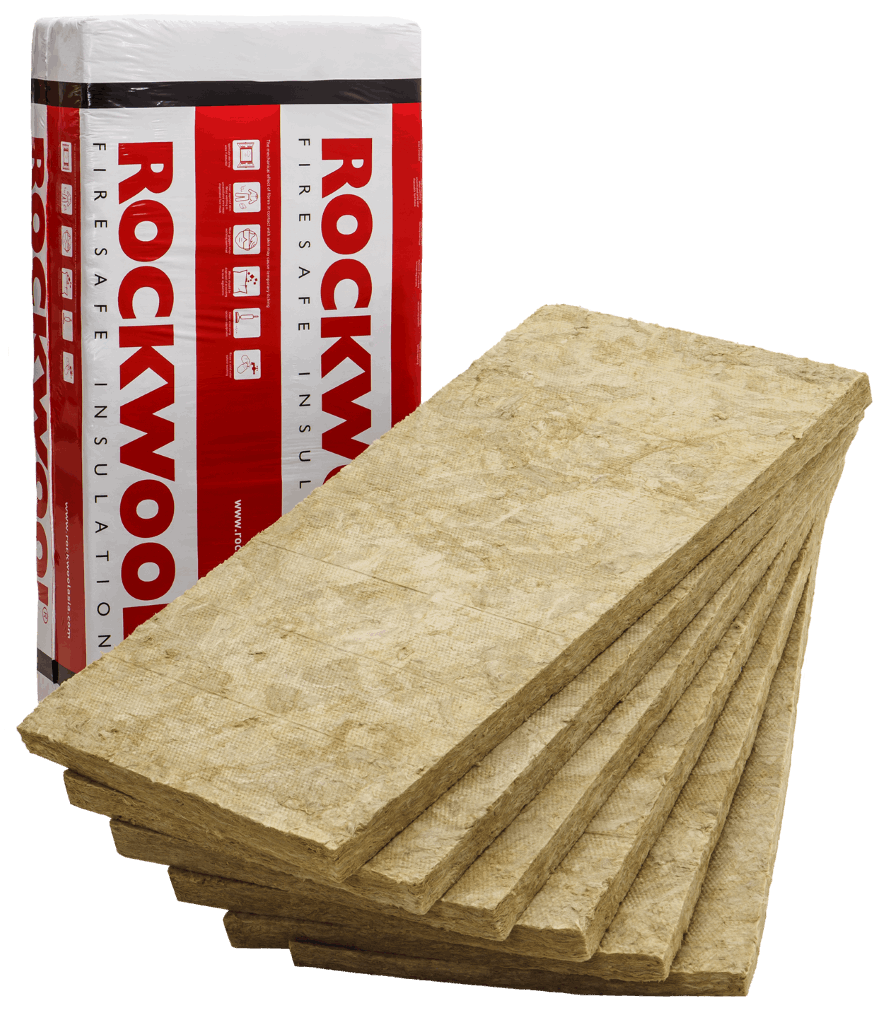

Rockwool Multiboard 64



Product Description

Rockwool Multiboard is a strong and rigid board.
Applications

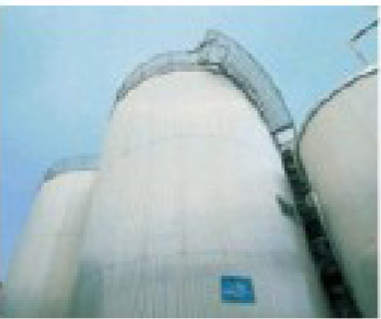

Rockwool Multiboard can be used for the thermal and acoustic insulation of horizontal and vertical walls where a stable insulation product is required. For example, tank walls or acoustic panels.

Advantages

  • Excellent thermal and acoustic insulation
  • Rigid product combined with aluminium foil or fibreglass coating provides a smart, smooth surface finish




Performance Temperature Value Unit of measure Standard Standard
t°m (°C) 50 0.039 λ (W/mK) EN 12667 ASTM C177
t°m (°C) 100 0.048 λ (W/mK) EN 12667 ASTM C177
t°m (°C) 150 0.058 λ (W/mK) EN 12667 ASTM C177
t°m (°F) 100 0.268 λ (BTU.in/ft2.h.°F) EN 12667 ASTM C177
t°m (°F) 200 0.317 λ (BTU.in/ft2.h.°F) EN 12667 ASTM C177
t°m (°F) 300> 0.317 λ (BTU.in/ft2.h.°F) EN 12667 ASTM C177
Property Performance Standard
Maximum ServiceTemperature 350°C (662 F°) EN 14706
  450°C (842 F°) ASTM C411
Maximum ServiceTemperature A1 EN 13501-1
  Surface burning characteristics: Flame spread=passed, Smoke development=passed ASTM E84
Water absorption Water absorption < 1 kg/m2± 0.02%vol EN 1609
  Water vapour absorption (vapor sorption) ASTM C1104/C1104M
Water leachable chloride content Conforms to the stainless steel corrosion specification as per ASTM test methods C692 and C871 ASTM C795
Nominal density 64kg/m2
Water vapour resistance factor μ = 1.0 EN 12086
Compliance Rockwool (RW) slabs for thermal insulation of equipment CINI 2.2.01
  Standard specification for mineral fibre block and board thermal insulation, type IA and IB ASTM C612-04
Thickness mm Length mm Width mm M2 pr. 40ft HC Packaging m2/pack Packaging
40 1000 600 1620 6 Shrink wrapped
50 1000 600 1210 4.8 Shrink wrapped
60 1000 600 1008 4.8 Shrink wrapped
70 1000 600 907 3.6 Shrink wrapped
75 1000 600 756 3.6 Shrink wrapped
80 1000 600 756 3.6 Shrink wrapped
89 1000 600 630 3 Shrink wrapped
80 1000 600 648 2.4 Shrink wrapped
