C series High Performance Thermal Camera |
|
| |
| |
 |
|

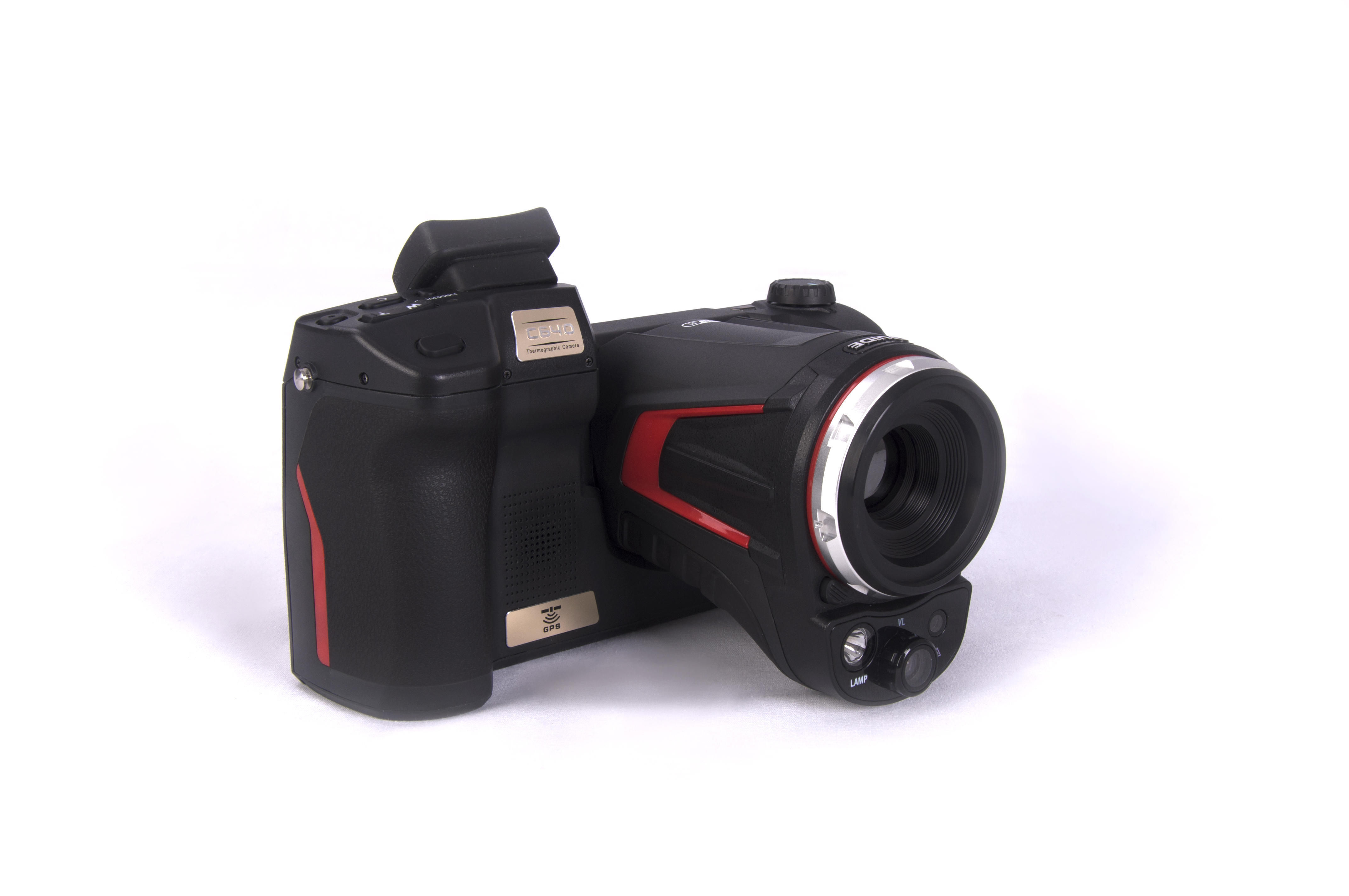

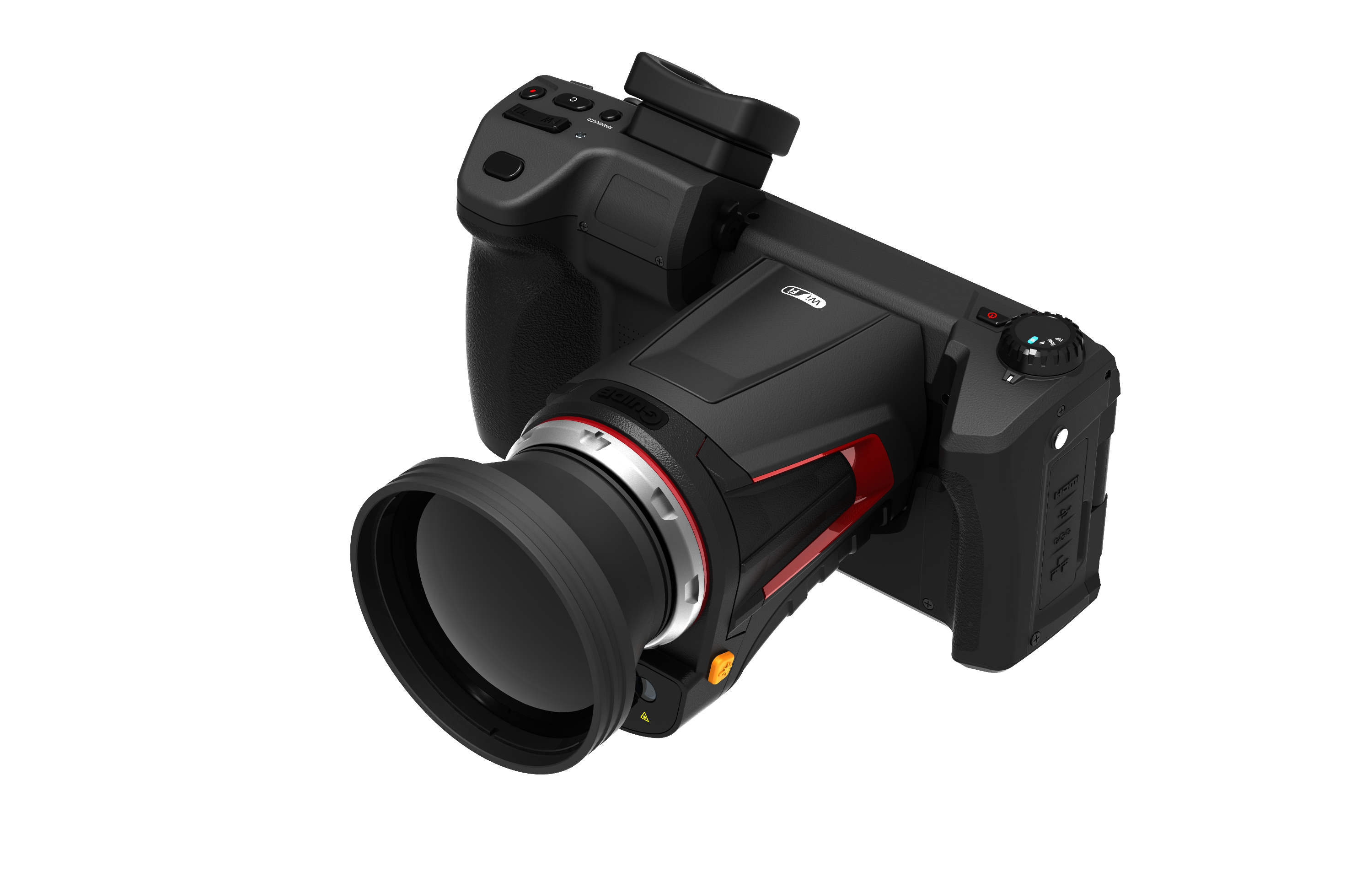

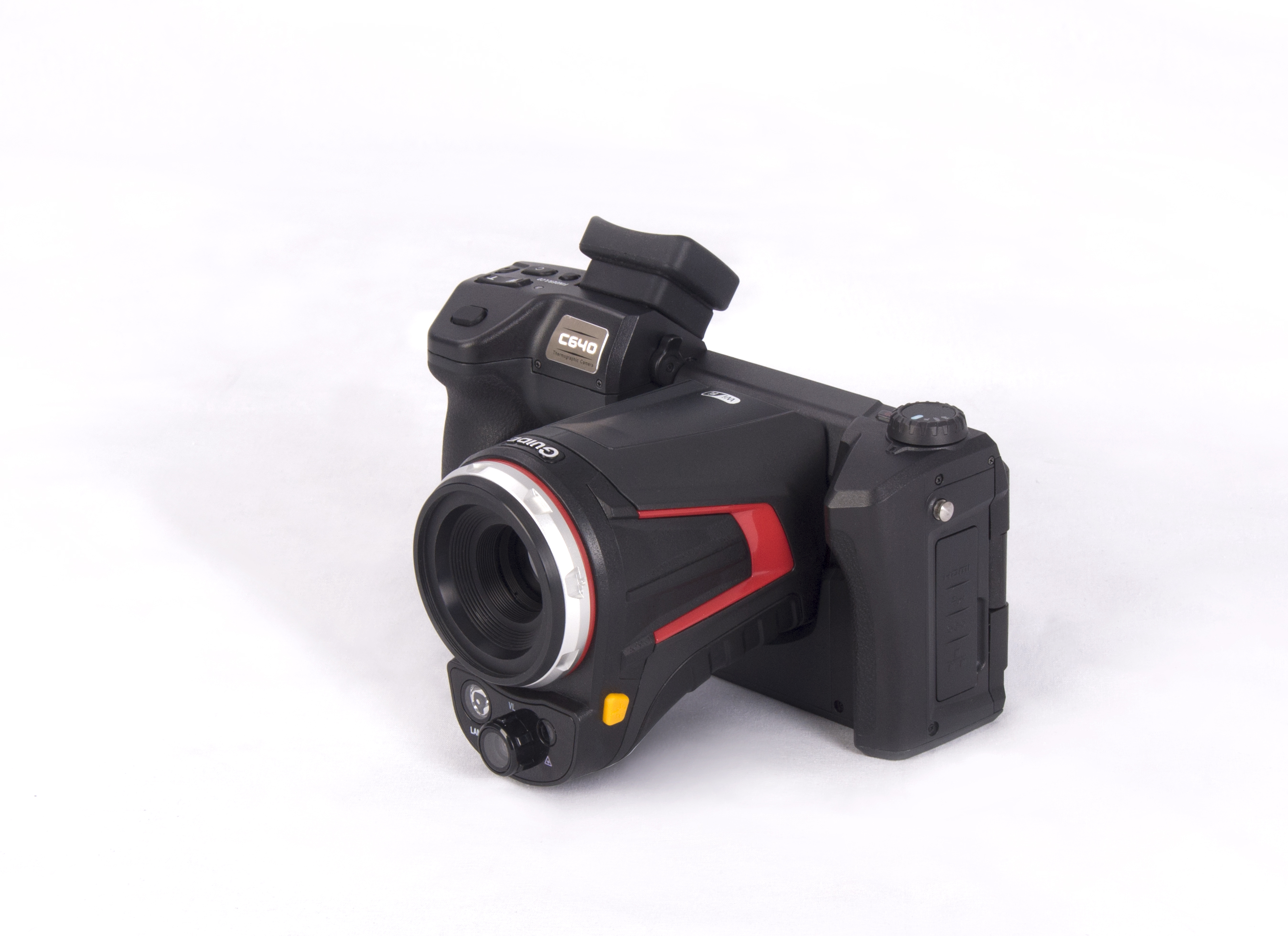

| GUIDE C Series High Performance Thermal Camera
|
| Won two different Industrial Design Awards |
|
|
Application field: Thermography, Solar Power, Energy Petrochemical industry, Industrial process, Building inspection. |
GUIDE C series thermal imaging camera is an intelligent inspection device superior to any other thermal imaging products in its class. High resolution allows the electrical and mechanical users to pinpoint any overheating quickly and take accurate temperature measurement intuitively on a 5-inch 720P LCD display. The ergonomic rotating LCD and lens design makes it comfortable to aim up at any overhead components. Based on an open Android operating system design, it works not only as a thermal camera but also a mobile terminal for versatile application programs.
|
|
|
|
|
High resolution IR & Visual imaging
|
|
640×480/384×288 IR FPA detector, more pixels and higher IR image resolution
|
|
1280×960 LCOS viewfinder, fast imaging and power saving
|
|
5-inch 720P LCD display, touch screen present intuitive and high clarity images and data
|
|

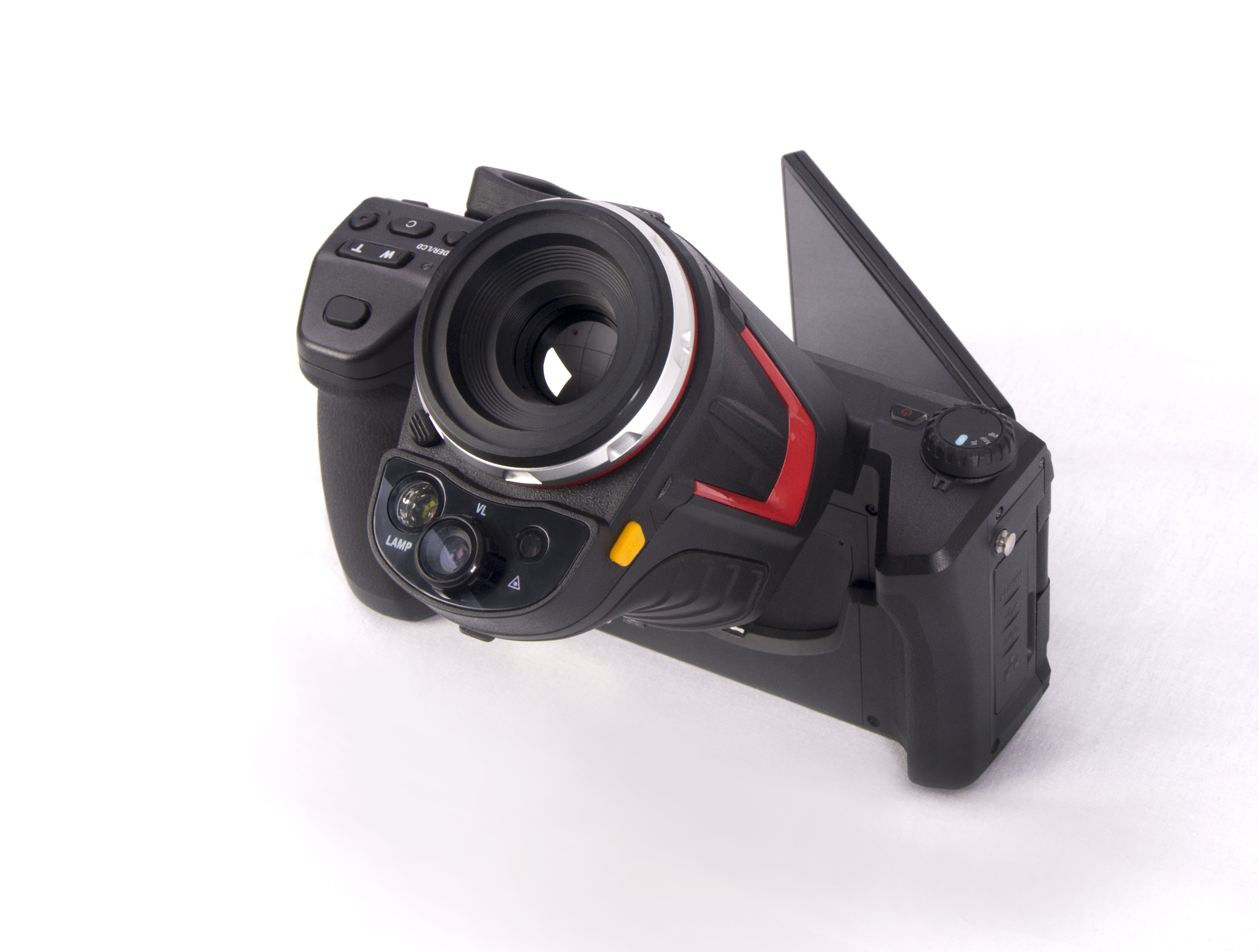

500MP visual camera & lamp, always ensure clear visual image capture in any lighting conditions
|
|
|
 |
|
|
 |
|
|

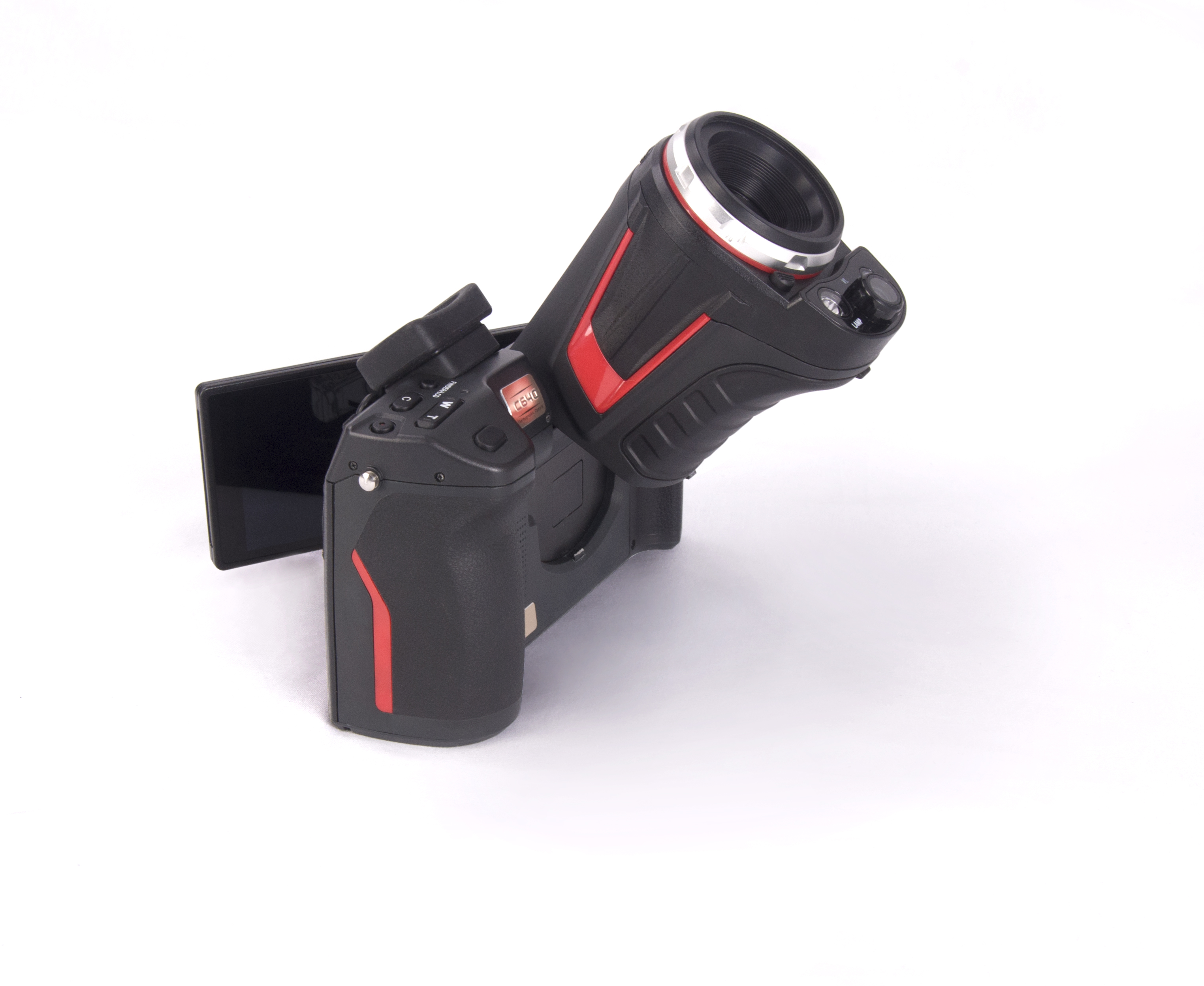

Rotary design for multi-angle observation
|
|

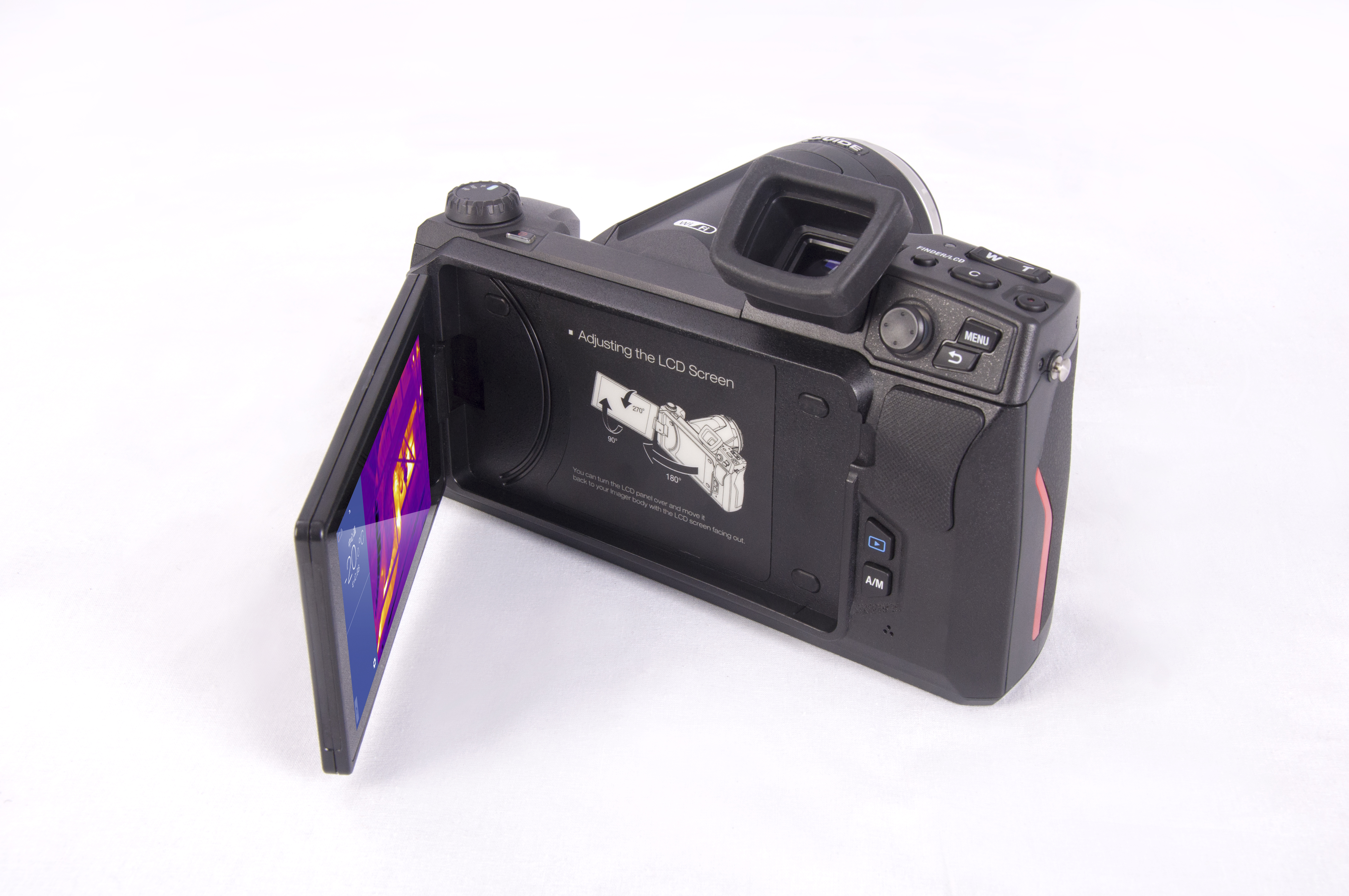

Rotating LCD display up 270°and lens detents up to 70°for easy viewing angle
|
|
Excellent ergonomic design to reduce fatigue with a long time holding
|
|
|
|
|
Easy Wi-Fi communication
|
|
Images and videos can be transferred to Wi-Fi equipped mobile terminals for further analysis while the camera can also be commanded remotely by the mobile devices
|
|
The onboard analysis report can also be printed instantly on a Wi-Fi printer
|
|
|
 |
|
|
 |
|
|
Smart operating system for extendable APP
|
|
Android based operation system with open platform for various APP developments and convenient program updating
|
|
Powerful onboard analysis and reporting capabilities
|
|
|
|
|
Multiple image presentation, IR & visible video
|
|
Including IR, visible, PIP and MIF to choose
|
|
Using MIF image for the first time to display numbers, letters, labels or tiny temperature difference details
|
|
Video streaming for IR & visible can also be simultaneous in SD card
|
|
|
 |
|
|
 |
|
|
Multiple optional lenses
|
|

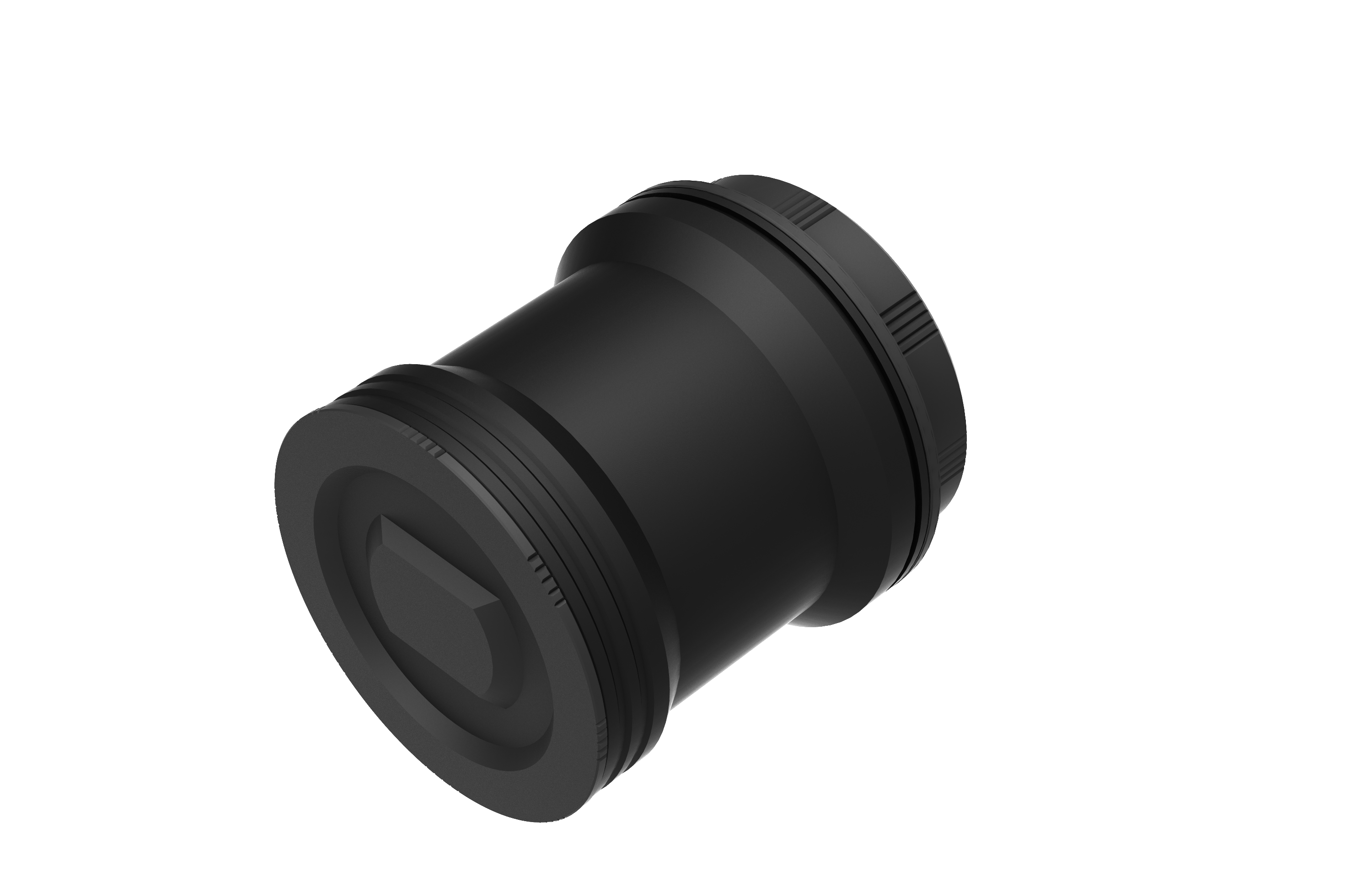

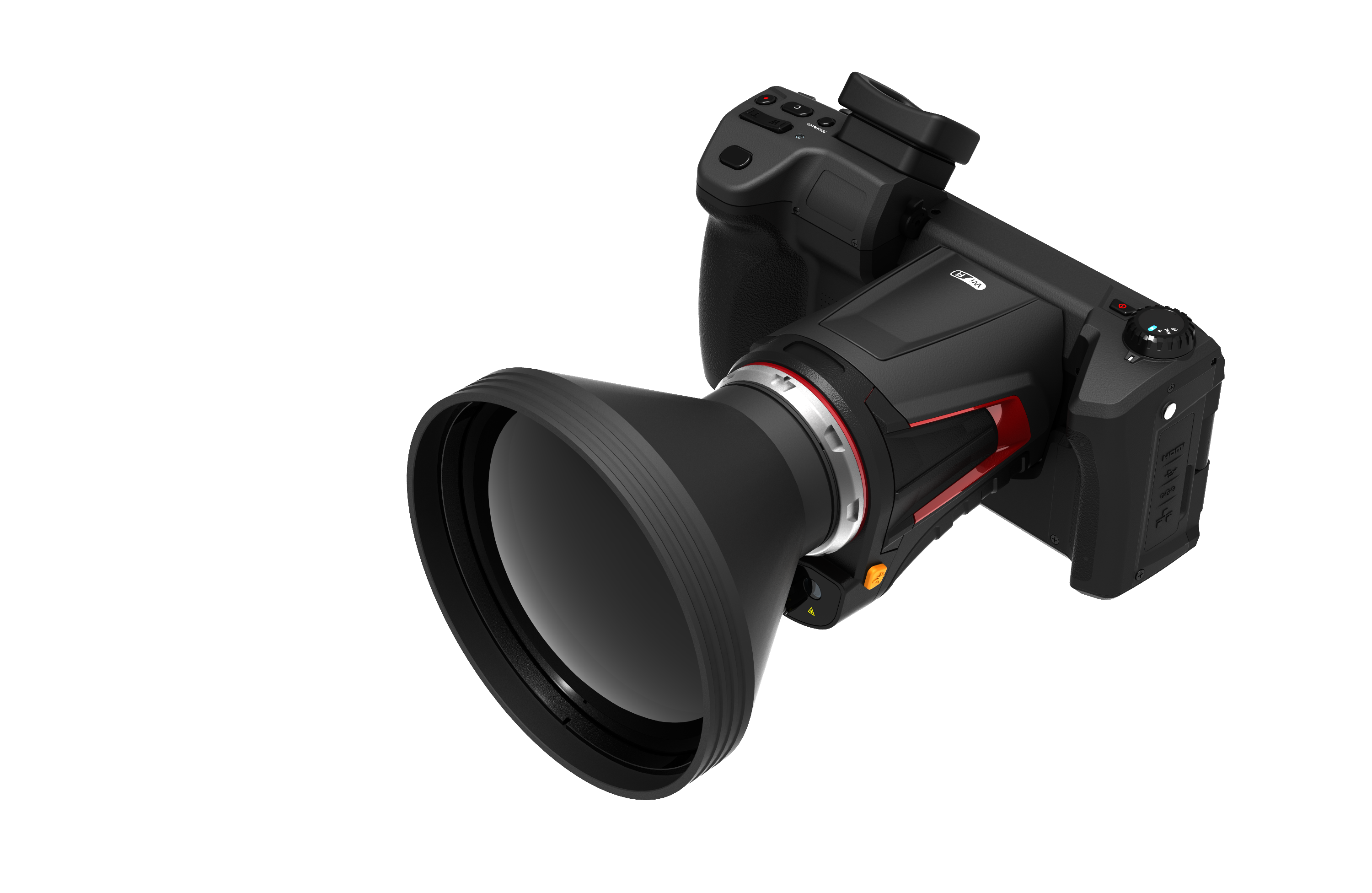

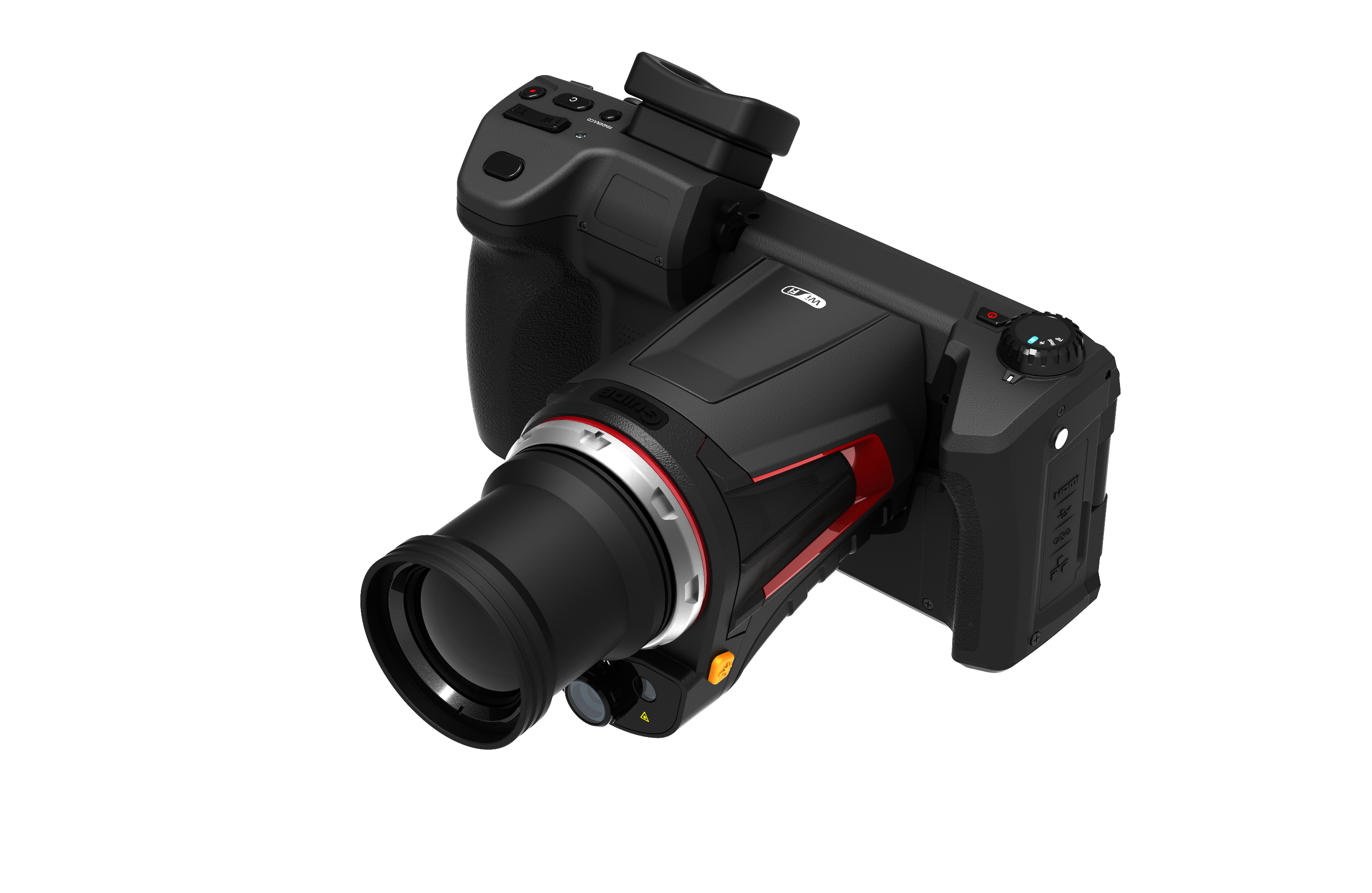

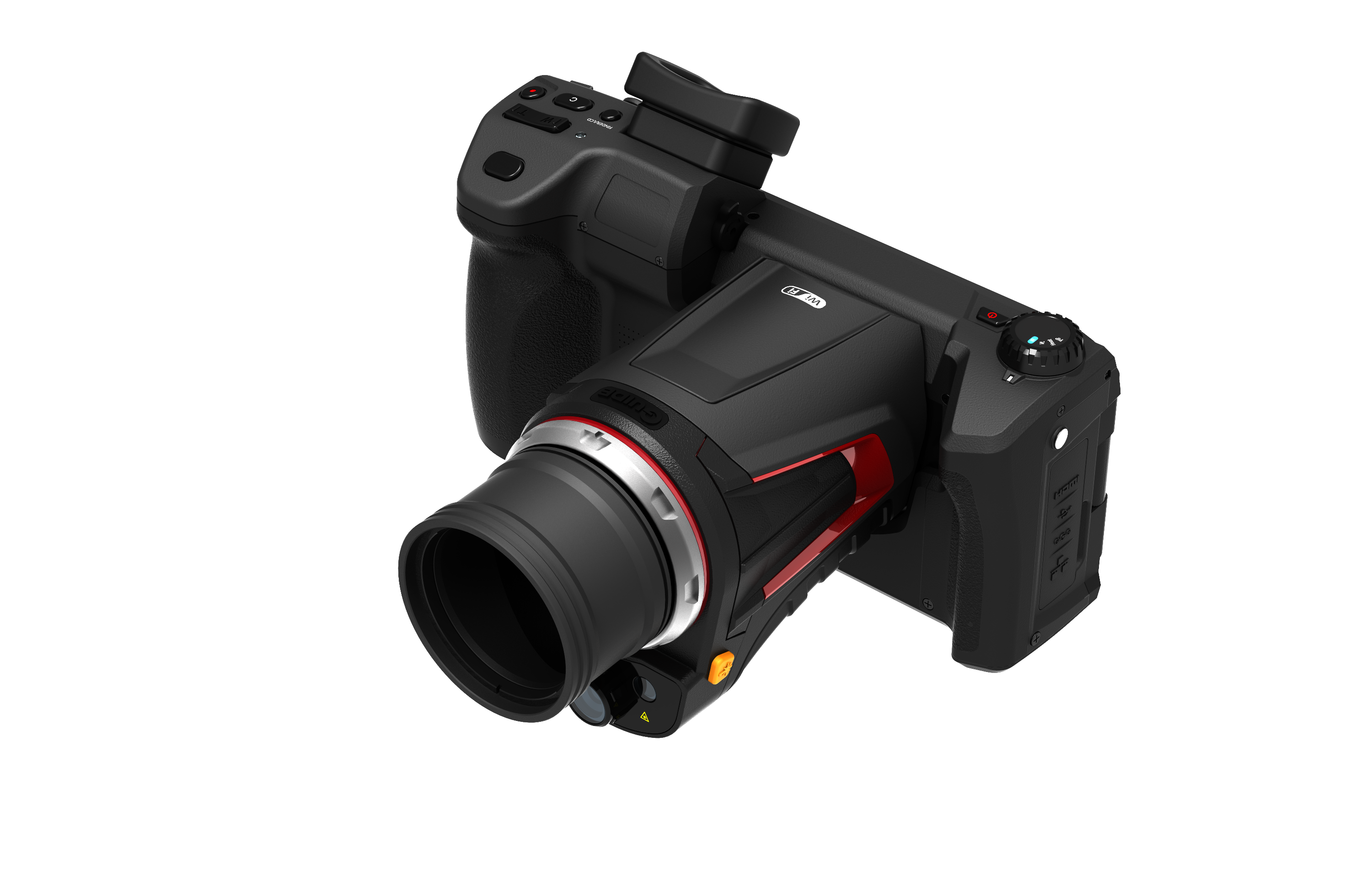

Equipped with 25mm Germanium lens, wide-angle and tele lenses
|
|
Combine automatic and electric focusing
|
|
|
|
|
Accessories
|
|
Standard accessories: Li-ion battery, Power supply adapter, Adapter plug (5 pcs), Shoulder strap, USB cable, HDMI cable, Network cable, Quick Start Guide, User Manual, Data Download Card, SD card(16G), Hard transport case
|
|
Optional accessories: Li-ion battery, Pouch, Battery charger, Bluetooth earphone, Extended lens, Lens bag
|
|
|
 |
|
|
 |
|
|
Ir Analyzer on PC terminal
|
|
Images capturing by an infrared camera is only the first step of an infrared inspection. Guide Ir Analyzer will help you accomplish the full inspection process until a professional report is submitted.
|
|
. Various images and videos resources
|
|
. Image processing
|
|
. Video analysis
|
|
. Preference settings
|
|
. Report generation in PDF or WORD format
|
|
|
|
|
App on mobile terminal
|
|
You can import images or videos to the mobile devices, process and analyze on them to get an immediate report, or you can also share the results with your fellows or decision makers. With the APP installed on the mobile devices, you can also free your hands during the inspection to get some relief. The APP will support you to accomplish all basic operations on the camera, such as focus, shutter action, electronic zoom, palette shift, image modes shift etc.
|
|
. Live video transfer wirelessly
|
|
. Camera operation control remotely
|
|
. Powerful analysis and report generation
|
|
. Immediate inspection results sharing
|
|
|
 |
|
|
|
| |
|
| |
|
| |
|
|
| |
| |
| |
 |
 |
|
